D459-V3LL | ZF Switches and Sensors

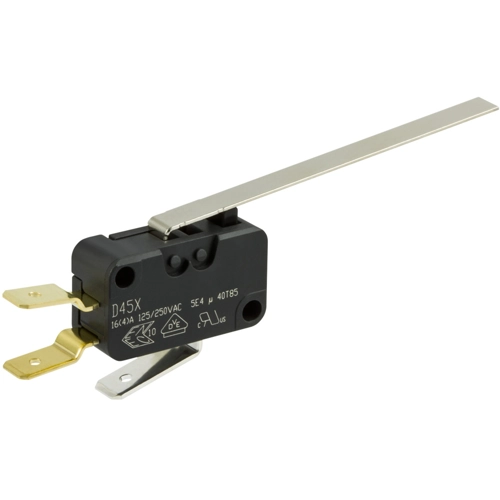

Miniature snap-action switche, On-On, plug-in connection, long hinge lever, 0.22 N, 16 (4) A/250 VAC, 10 (3) A/400 VAC, IP40, D459-V3LL
Unit Price (€ / pc.)
1.3923 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Miniature snap-action switches, type Cherry D459.
Switching function: CO. Breaking power: 16 (4) A/250 VAC, 10 (3) 400 VAC (EN 61058), 15 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 300. Operating temperatures: –40 to + +85 °C. Terminals: CuZn. Electrical useful life: 50,000 switching cycles. Certifications: ENEC, UL, CSA.
With flat auxiliary actuator, 69.9 mm length.
Switch actuating force: 22 cN. Action point: 15.2 mm (±3.2). Pretravel: maximum 7.6 mm. Overtravel: minimum 4.7 mm. Travel difference: maximum 1.7 mm. Home position: maximum 25.2 mm.
Technical attributes (type, termination): D459-V3LL, 6.3 x 0.8 PCB terminals
Technical specifications
| Anschluss | Steckanschluss | |
| Betätiger | Scharnierhebel lang | |
| Betätigungskraft | 0,22 N | |
| Gehäusematerial | PET | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 16 (4) A/250 VAC, 10 (3) A/400 VAC | |
| Schaltpunkt | 15,2 mm ±3,2 mm | |
| Schutzart (Betätigungsseite) | IP40 |
Download
Logistics
| Ursprungsland | UA |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
