D459-V3RA | ZF Switches and Sensors
Miniature snap-action switche, On-On, plug-in connection, short roller lever, 1 N, 16 (4) A/250 VAC, 10 (3) A/400 VAC, IP40, D459-V3RA
Unit Price (€ / pc.)
2.3800 € *
Available: 267 pcs.
Leadtime: 37 Weeks **
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
25 pcs.
2.0230 €
100 pcs.
1.8802 €
*incl. VAT plus shipping costs
**Subject to prior sale

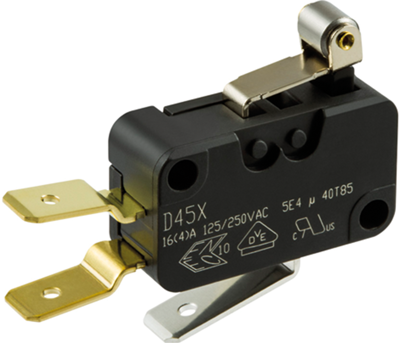

Miniature snap-action switches, type Cherry D459.
Switching function: CO. Breaking power: 16 (4) A/250 VAC, 10 (3) 400 VAC (EN 61058), 15 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 300. Operating temperatures: –40 to + +85 °C. Terminals: CuZn. Electrical useful life: 50,000 switching cycles. Certifications: ENEC, UL, CSA.
With 20.6 mm auxiliary roll actuator.
Switch actuating force: 100 cN. Action point: 20.5 mm (±0.8). Pretravel: maximum 1.2 mm. Overtravel: minimum 1.0 mm. Travel difference: maximum 0.4 mm. Home position: maximum 21.8 mm.
Technical attributes (type, termination): D459-V3RA, 6.3 x 0.8 PCB terminals
Technical specifications
| Connection | plug-in connection | |
| Actuator | short roller lever | |
| actuating force | 1 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 16 (4) A/250 VAC, 10 (3) A/400 VAC | |
| Switching point | 20.5 mm ±0.8 mm | |
| Protection class | IP40 |
Download
Logistics
| Country of origin | UA |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
