D45U-V3LD | ZF Switches and Sensors
Miniature snap-action switche, On-On, plug-in connection, hinge lever, 0.5 N, 16 (4) A/250 VAC, 10 (3) A/400 VAC, IP40, D45U-V3LD
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Next delivery: 170 pcs. on 2025-02-05
Leadtime: 22 Weeks **
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
25 pcs.
1.6541 €
100 pcs.
1.5232 €
*incl. VAT plus shipping costs
**Subject to prior sale

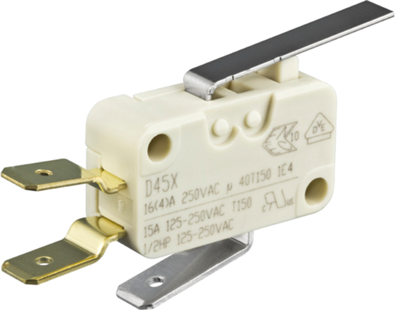

Miniature snap-action switch, type Cherry D45U.
Switching function: CO. Breaking power: 16 (4) A/250 VAC, 10 (3) 400 VAC (EN 61058), 15 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 300. Operating temperatures: –40 to + +150 °C. Terminals: CuZn. Electrical useful life: 50,000 switching cycles. Certifications: ENEC, UL, CSA.
With flat auxiliary actuator, 35.6 mm length.
Switch actuating force: 50 cN. Action point: 15.2 mm (±1.2). Pretravel: maximum 3.2 mm. Overtravel: minimum 2.2 mm. Travel difference: maximum 0.8 mm. Home position: maximum 19.8 mm.
Technical attributes (type, termination): D45U-V3LD, 6.3 x 0.8 PCB terminals
Technical specifications
| Anschluss | Steckanschluss | |
| Betätiger | Scharnierhebel | |
| Betätigungskraft | 0,5 N | |
| Gehäusematerial | PET | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 16 (4) A/250 VAC, 10 (3) A/400 VAC | |
| Schaltpunkt | 15,2 mm ±1,2 mm | |
| Schutzart (Betätigungsseite) | IP40 |
Download
Logistics
| Ursprungsland | UA |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
