DB1C-A1LB | ZF Switches and Sensors

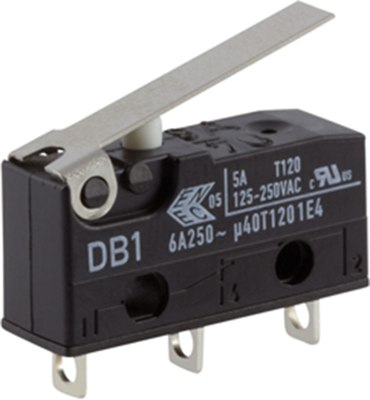

Subminiature snap-action switch, On-On, solder connection, hinge lever, 0.6 N, 5 A/125 VAC, 1 A/48 VDC, IP50, DB1C-A1LB
Subminiature snap-action switches series DB, type Cherry DB1C-.
With high switching accuracy: changeover contact, breaking capacity: 6.0 A/250 VAC (EN 61058), 5.0 A/125 to 250 VAC (UL 1054), contacts: AgNi, leakage current resistance: PTI 175. Operating temperatures: –40 to +120 °C. Connections: copper zinc, silver-plated, electrical useful life: 50000 switching cycles, certifications: ENEC, UL, CSA. The length of the raised auxiliary actuator is measured from the center of the mounting bore.
With straight flat auxiliary actuator, type DB1C-.
Switch actuating force: max. 60 cN. Action point: 10.7 mm (±1.3). Pretravel: max. 4.0 mm. Overtravel: min. 2.0 mm. Travel difference: max. 0.5 mm. Home position: max. 14 mm.
Technical attributes (type. termination, actuator length): DB1C-A1LB, solder terminals, 4.8 mm
| Connection | solder connection | |
| Design | straight | |
| Actuator | hinge lever | |
| actuating force | 0.6 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 5 A/125 VAC, 1 A/48 VDC | |
| Switching point | 10.7 mm ±1.3 mm | |
| Protection class | IP50 |
| Country of origin | DE |
| Customs tariff number | 85365019 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
