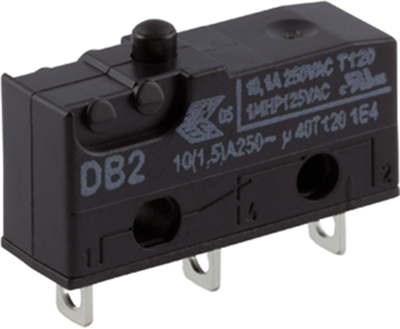

Subminiature snap-action switch, On-On, solder connection, pin plunger, 2.5 N, 10 A/125 VAC, IP50, DB2C-A1AA
Subminiature snap-action switches series DB, type Cherry DB2C-.
With high switching accuracy; switching action: changeover contact, breaking capacity: 10 (1.5) A/250 VAC (EN 61058), 10.1 A/125 to 250 VAC (UL 1054). Contacts: AgNi, leakage current resistance: PTI 175. Operating temperatures: –40 to +120 °C. Connections: CuZn, silver-plated, electrical useful life: 10000 switching cycles, certifications: ENEC, UL, CSA. The length of the raised auxiliary actuator is measured from the center of the mounting hole.
Without auxiliary actuator, type DB2C-.
Switch actuating force: maximum 250 cN. Action point: 8.4 mm (±0.3). Pretravel: maximum 1.0 mm. Overtravel: minimum 0.6 mm. Travel difference: maximum 0.1 mm. Home position: maximum 9.3 mm.
Technical attributes (type, connection type): DB2C-A1AA, solder terminals, short
| Connection | solder connection | |
| Design | straight | |
| Actuator | pin plunger | |
| actuating force | 2.5 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 10 A/125 VAC | |
| Switching point | 8.4 mm ±0.3 mm | |
| Protection class | IP50 |
| Country of origin | DE |
| Customs tariff number | 85365019 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
