DB3C-A1RC | ZF Switches and Sensors

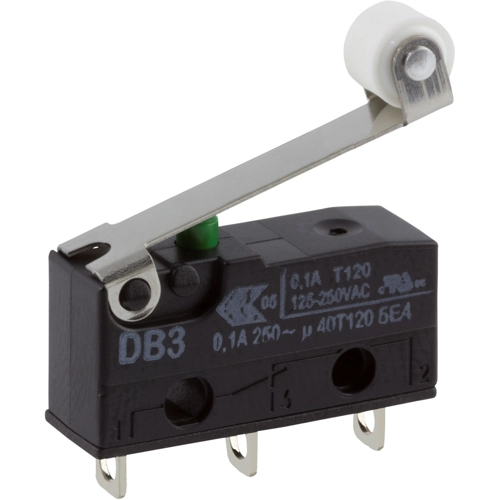

Subminiature snap-action switch, On-On, solder connection, roller lever, 0.65 N, 0.1 A/250 VAC, IP50, DB3C-A1RC
Subminiature snap-action switches series DB, type Cherry DB3C-.
With high switching accuracy; switching action: changeover contact, breaking capacity: 0.1 A/250 VAC (EN 61058), 0.1 A/125 VAC (UL 1054), contacts: AuAgPt (Crosspoint), leakage current resistance: PTI 175. Operating temperatures: - 40 to +120 °C. Connections: CuZn, silver-plated, electrical useful life: 50000 switching cycles, certifications: ENEC, UL, CSA. The length of the raised auxiliary actuator is measured from the center of the mounting hole.
With roll, straight, short, 2.5 mm, type DB3C-.
Switch actuating force: maximum 65 cN. Action point: 15.8 mm (±1.3). Pretravel: maximum 4.0 mm. Overtravel: minimum 2.0 mm. Travel difference: maximum 0.5 mm. Home position: maximum 19 mm.
Technical attributes (type, connection type): DB3C-A1RC, solder terminals.
| Connection | solder connection | |
| Design | straight | |
| Actuator | roller lever | |
| actuating force | 0.65 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 0.1 A/250 VAC | |
| Switching point | 15.8 mm ±1.3 mm | |
| Protection class | IP50 |
| Country of origin | DE |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
