DC1C-A1RC | ZF Switches and Sensors

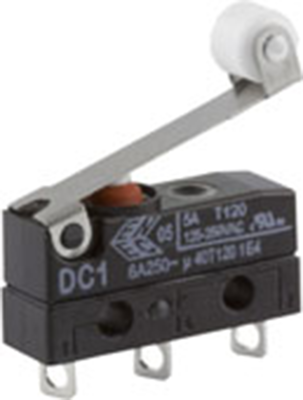

Subminiature snap-action switch, On-On, solder connection, roller lever, 0.8 N, 6 A/250 VAC, IP67, DC1C-A1RC
Subminiature snap-action switches series DB, type Cherry DC1C-.
Sealed switch with high switching accuracy; Switching action: CO . Breaking power: 6.0 A/250 VAC (EN 61058), 5.0 A/125 to 250 VAC, 1.0 A 48 VDC (UL 1054). Contacts: AgNi. Leakage current resistance:: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 10,000 switching cycles. Degree of protection: IP 67.
With 4.7 mm auxiliary roll actuator, type DC1C-.
Switch actuating force: maximum 80 cN. Action point: 16.2 mm (±1.5). Pretravel: maximum 5.0 mm. Overtravel: minimum 1.5 mm. Travel difference: maximum 0.6 mm. Home position: maximum 20 mm.
Technical attributes (type. termination, operating temperatures, certifications): DC1C-A1RC, solder terminals, –40 to +120 °C, ENEC, UL, CSA
| Connection | solder connection | |
| Design | straight | |
| Actuator | roller lever | |
| actuating force | 0.8 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 6 A/250 VAC | |
| Switching point | 16.2 mm ±1.5 mm | |
| Protection class | IP67 |
| Country of origin | DE |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
