DC1C-C3AA | ZF Switches and Sensors

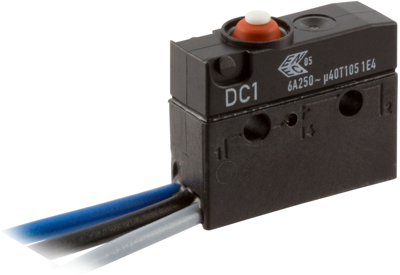

Subminiature snap-action switch, On-On, stranded wires, pin plunger, 2 N, 6 A/250 VAC, IP67, DC1C-C3AA
Unit Price (€ / pc.)
7.0805 € *
Available: 153 pcs.
Leadtime: 32 Weeks **
Total Price:
7.08 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0805 €
10 pcs.
6.2356 €
100 pcs.
5.4859 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switches series DB, type Cherry DC1C-.
Sealed switch with high switching accuracy; Switching action: CO . Breaking power: 6.0 A/250 VAC (EN 61058), 5.0 A/125 to 250 VAC, 1.0 A 48 VDC (UL 1054). Contacts: AgNi. Leakage current resistance:: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 10,000 switching cycles. Degree of protection: IP 67.
Without auxiliary actuator, type DC1C-.
Switch actuating force: maximum 200 cN. Action point: 8.4 mm (±0.3). Pretravel: maximum 1.0 mm. Overtravel: minimum 0.6 mm. Travel difference: maximum 0.1 mm. Home position: maximum 9.3 mm.
Technical attributes (type. termination, operating temperatures, certifications): DC1C-C3AA, hook-up wires, –40 to +105 °C, ENEC
Technical specifications
| Anschluss | Litzen | |
| Bauform | abgewinkelt | |
| Betätiger | Stift Stößel | |
| Betätigungskraft | 2 N | |
| Gehäusematerial | PET | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 6 A/250 VAC | |
| Schaltpunkt | 8,4 mm ±0,3 mm | |
| Schutzart (Betätigungsseite) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
