DC1C-C3LC | ZF Switches and Sensors

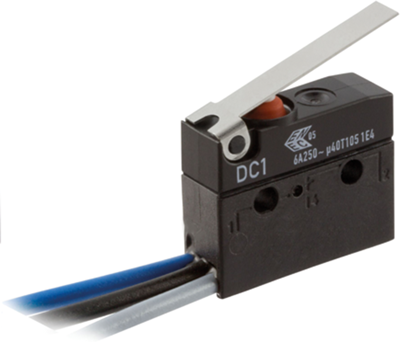

Subminiature snap-action switch, On-On, stranded wires, hinge lever, 0.7 N, 6 A/250 VAC, IP67, DC1C-C3LC
Unit Price (€ / pc.)
7.1400 € *
Available: 2,931 pcs.
Leadtime: On Request **
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1400 €
10 pcs.
6.2713 €
100 pcs.
5.5097 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switches series DB, type Cherry DC1C-.
Sealed switch with high switching accuracy; Switching action: CO . Breaking power: 6.0 A/250 VAC (EN 61058), 5.0 A/125 to 250 VAC, 1.0 A 48 VDC (UL 1054). Contacts: AgNi. Leakage current resistance:: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 10,000 switching cycles. Degree of protection: IP 67.
With flat 7.0 mm auxiliary actuator, type DC1C-.
Switch actuating force: maximum 70 cN. Action point: 11.1 mm (±1.5). Pretravel: maximum 5.0 mm. Overtravel: minimum 1.5 mm. Travel difference: maximum 0.6 mm. Home position: maximum 15 mm.
Technical attributes (type. termination, operating temperatures, certifications): DC1C-C3LC, hook-up wires, –40 to +105 °C, ENEC
Technical specifications
| Connection | stranded wires | |
| Design | angled | |
| Actuator | hinge lever | |
| actuating force | 0.7 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 6 A/250 VAC | |
| Switching point | 11.1 mm ±1.5 mm | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
