DC1C-C3RB | ZF Switches and Sensors

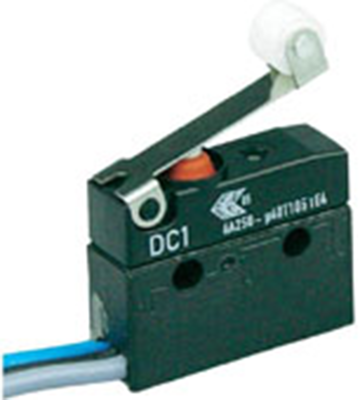

Subminiature snap-action switch, On-On, stranded wires, roller lever, 0.9 N, 6 A/250 VAC, IP67, DC1C-C3RB
Unit Price (€ / pc.)
8.2229 € *
Available: 114 pcs.
Leadtime: 32 Weeks **
Total Price:
8.22 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2229 €
10 pcs.
7.2352 €
50 pcs.
6.7473 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switches series DB, type Cherry DC1C-.
Sealed switch with high switching accuracy; Switching action: CO . Breaking power: 6.0 A/250 VAC (EN 61058), 5.0 A/125 to 250 VAC, 1.0 A 48 VDC (UL 1054). Contacts: AgNi. Leakage current resistance:: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 10,000 switching cycles. Degree of protection: IP 67.
With 2.5 mm auxiliary roll actuator, type DC1C-.
Switch actuating force: maximum 90 cN. Action point: 15.8 mm (±1.3). Pretravel: maximum 4.0 mm. Overtravel: minimum 1.5 mm. Travel difference: maximum 0.5 mm. Home position: maximum 19 mm.
Technical attributes (type. termination, operating temperatures, certifications): DC1C-C3RB, hook-up wires, –40 to +105 °C, ENEC
Technical specifications
| Anschluss | Litzen | |
| Bauform | abgewinkelt | |
| Betätiger | Rollenhebel | |
| Betätigungskraft | 0,9 N | |
| Gehäusematerial | PET | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 6 A/250 VAC | |
| Schaltpunkt | 15,8 mm ±1,3 mm | |
| Schutzart (Betätigungsseite) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
