DC2C-A1LC | ZF Switches and Sensors

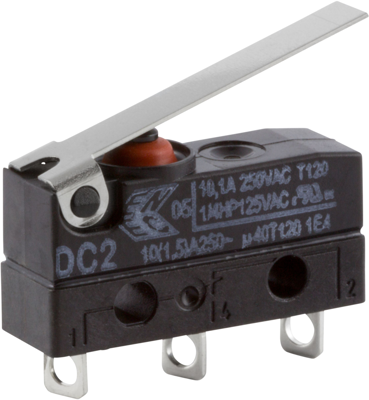

Subminiature snap-action switch, On-On, solder connection, hinge lever, 1.2 N, 10 A/125 VAC, IP67, DC2C-A1LC
Unit Price (€ / pc.)
2.6180 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
560 pcs.
2.6180 €
2800 pcs.
2.2253 €
5040 pcs.
2.0587 €
10080 pcs.
1.7612 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switches series DB, type Cherry DC2C-.
Sealed switch with high switching accuracy; Switching action: CO. Breaking power: 10 (1.5) A/250 VAC (EN 61058), 10.1 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 10,000 switching cycles. Degree of protection: IP 67.
With flat 7.0 mm auxiliary actuator, type DC2C-.
Switch actuating force: maximum 120 cN. Action point: 11.1 mm (±1.8). Pretravel: maximum 5.5 mm. Overtravel: minimum 1.5 mm. Travel difference: maximum 1.0 mm. Home position: maximum 15 mm.
Technical attributes (type, termination, operating temperatures, certifications): DC2C-A1LC, solder terminals, –40 to +120 °C, ENEC, UL, CSA
Technical specifications
| Connection | solder connection | |
| Design | straight | |
| Actuator | hinge lever | |
| actuating force | 1.2 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 10 A/125 VAC | |
| Switching point | 11.1 mm ±1.8 mm | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
