DC3C-A1AA | ZF Switches and Sensors

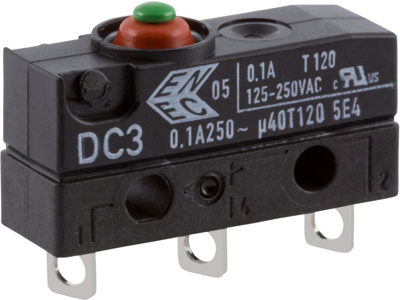

Subminiature snap-action switch, On-On, solder connection, pin plunger, 2 N, 0.1 A/250 VAC, IP67, DC3C-A1AA
Unit Price (€ / pc.)
2.5109 € *
Available: 311 pcs.
Next delivery: 1,200 pcs. on 2025-02-17
Leadtime: 14 Weeks **
Total Price:
2.51 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5109 €
25 pcs.
2.1420 €
100 pcs.
1.9754 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switches series DB, type Cherry DC3C-.
Sealed switch with high switching accuracy; Switching action: CO. Breaking power: 0.1 A/250 VAC (EN 61058), 0.1 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 50,000 switching cycles. Degree of protection: IP 67.
Without auxiliary actuator, type DC3C-.
Switch actuating force: maximum 200 cN. Action point: 8.4 mm (±0.3). Pretravel: maximum 1.0 mm. Overtravel: minimum 0.6 mm. Travel difference: maximum 0.1 mm. Home position: maximum 9.3 mm.
Technical attributes (type, termination, operating temperatures, certifications): DC3C-A1AA, solder terminals, –40 to +120 °C, ENEC, UL, CSA
Technical specifications
| Connection | solder connection | |
| Design | straight | |
| Actuator | pin plunger | |
| actuating force | 2 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 0.1 A/250 VAC | |
| Switching point | 8.4 mm ±0.3 mm | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
