DC3C-A1LC | ZF Switches and Sensors

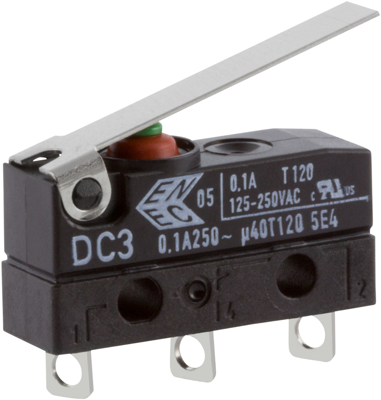

Subminiature snap-action switch, On-On, solder connection, hinge lever, 0.69 N, 0.1 A/250 VAC, IP67, DC3C-A1LC
Unit Price (€ / pc.)
2.5228 € *
Available: 0 pcs.
Available in 5 Days: 120 pcs.
Leadtime: 22 Weeks **
Subminiature snap-action switches series DB, type Cherry DC3C-.
Sealed switch with high switching accuracy; Switching action: CO. Breaking power: 0.1 A/250 VAC (EN 61058), 0.1 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 50,000 switching cycles. Degree of protection: IP 67.
With flat 7.0 mm auxiliary actuator, type DC3C-.
Switch actuating force: maximum 70 cN. Action point: 11.1 mm (±1.5). Pretravel: maximum 5.0 mm. Overtravel: minimum 1.5 mm. Travel difference: maximum 0.6 mm. Home position: maximum 15 mm.
Technical attributes (type, termination, operating temperatures, certifications): DC3C-A1LC, solder terminals, –40 to +120 °C, ENEC, UL, CSA
Technical specifications
| Latching switching function | Ein-Ein | |
| Actuator | Scharnierhebel | |
| actuating force | 0,69 N | |
| Switching point | 11,1 mm ±1,5 mm | |
| Connection | Lötanschluss | |
| Design | gerade | |
| Shell Material | PET | |
| Breaking capacity | 0,1 A/250 VAC | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
