DC3C-A1RC | ZF Switches and Sensors

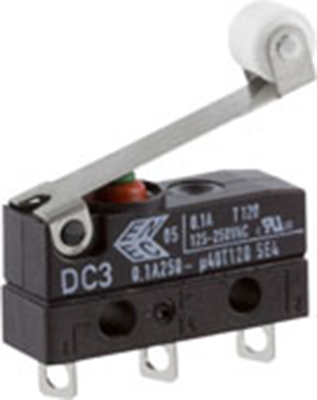

Subminiature snap-action switch, On-On, solder connection, roller lever, 0.78 N, 0.1 A/250 VAC, IP67, DC3C-A1RC
Unit Price (€ / pc.)
3.6533 € *
Available: 308 pcs.
Available in 5 Days: 14,560 pcs.
Leadtime: 22 Weeks **
Total Price:
3.65 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6533 €
10 pcs.
3.2249 €
100 pcs.
2.8203 €
*incl. VAT plus shipping costs
**Subject to prior sale
Subminiature snap-action switches series DB, type Cherry DC3C-.
Sealed switch with high switching accuracy; Switching action: CO. Breaking power: 0.1 A/250 VAC (EN 61058), 0.1 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 50,000 switching cycles. Degree of protection: IP 67.
With 4.7 mm auxiliary roll actuator, type DC3C-.
Switch actuating force: maximum 80 cN. Action point: 16.2 mm (±1.5). Pretravel: maximum 5.0 mm. Overtravel: minimum 1.5 mm. Travel difference: maximum 0.6 mm. Home position: maximum 20 mm.
Technical attributes (type, termination, operating temperatures, certifications): DC3C-A1RC, solder terminals, –40 to +120 °C, ENEC, UL, CSA
Technical specifications
| Anschluss | Lötanschluss | |
| Bauform | gerade | |
| Betätiger | Rollenhebel | |
| Betätigungskraft | 0,78 N | |
| Gehäusematerial | PET | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 0,1 A/250 VAC | |
| Schaltpunkt | 16,2 mm ±1,5 mm | |
| Schutzart (Betätigungsseite) | IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
