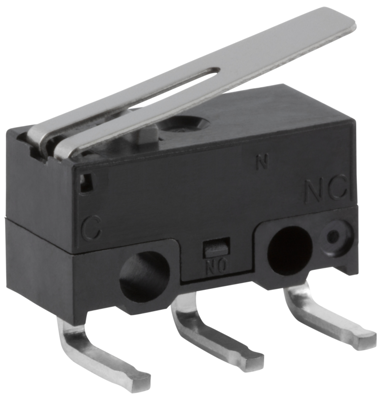

Subminiature snap-action switch, On-On, PCB connection, hinge lever, 0.45 N, 0.05 A/30 VDC, IP40, DG23-B3LA
Vom Hersteller nicht mehr lieferbar
Subminiature snap-action switches series DG, type Cherry DG23-.
Miniature version for extra-low voltage applications and PCB mounting, grid 5.08 mm; Contact type: changeover contact, breaking capacity to UL and CSA: 50 mA/30 VDC. Contacts: AgNi, gold-plated, actuator color: black. Ambient temperature: –25 to +85 °C. Connections: CuZn, silver-plated, materials: actuator: PBT (UL 94 VDC0), socket: PPHS (UL 94 VDC0). Certifications: UL, CSA. The length of the raised auxiliary actuator is measured from the center of the mounting hole.
With flat and straight auxiliary actuator, 4.35-mm length measured from the center of the fastening hole, type DG23-.
Switch actuating force: maximum 45 cN. Action point: 6.8 mm (+0.8/–0.4). Pretravel: maximum 1.8 mm. Overtravel: minimum 0.55 mm. Travel difference: maximum 0.5 mm. Home position: maximum 9.4 mm.
Technical attributes (type, connection type): DG23-B3LA, PCB connection, angled on the left
| Anschluss | Leiterplattenanschluss | |
| Bauform | abgewinkelt | |
| Betätiger | Scharnierhebel | |
| Betätigungskraft | 0,45 N | |
| Gehäusematerial | PPS | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 0,05 A/30 VDC | |
| Schaltpunkt | 5,4 mm ±0,2 mm | |
| Schutzart (Betätigungsseite) | IP40 |
| Ursprungsland | JP |
| Zolltarifnummer | 85365080 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
