DHGC-B4LA | ZF Switches and Sensors

Ultraminiature snap-action switche, On-On, solder connection, simulated roll, 0.5 N, 0.5 A/30 VDC, IP40, DHGC-B4LA

Order No.: 13G1228
MPN:
DHGC-B4LA
Series: DH
ZF Switches and Sensors
DHGC-B4LA ZF Switches and Sensors Snap Action Switches

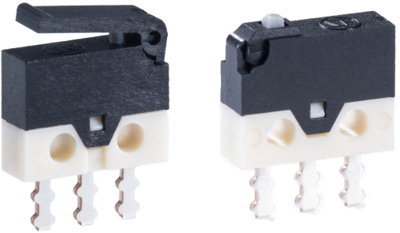

Image may differ
Print
Key Specification:
Latching switching function On-On
Actuator simulated roll
actuating force 0.5 N
Switching point 6.7 mm ±0.5 mm
Connection solder connection
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.2495 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
1.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
1.2495 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Ultra-miniature snap-action switch, DHGC-B4LA, ZF Switches and Sensors

Ultra-miniature snap-action switch, SPDT, 30 VDC, IP40.

Features

  • Dimensions only 8.2 mm × 2.7 mm × 6.2 mm
  • Designed for low switching currents and voltages
Technical specifications
Connection solder connection
Design angled
Actuator simulated roll
actuating force 0.5 N
Shell Material PPS
Latching switching function On-On
Breaking capacity 0.5 A/30 VDC
Switching point 6.7 mm ±0.5 mm
Protection class IP40
Show similar products 0
Logistics
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
