GPTCNH01 | ZF Switches and Sensors

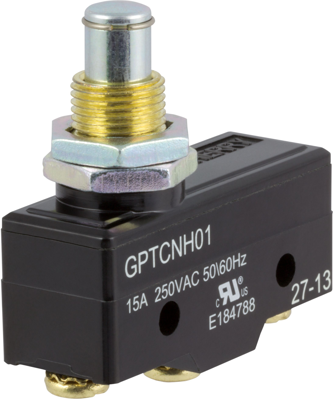

Micro snap-action switche, On-On, screw connection, pin plunger, 3.4 N, 15 A/250 VAC, GPTCNH01
Unit Price (€ / pc.)
14.4585 € *
Available: 9 pcs.
Next delivery: 100 pcs. on 2025-05-27
Leadtime: 18 Weeks **
Total Price:
14.46 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4585 €
10 pcs.
12.7330 €
50 pcs.
11.8524 €
*incl. VAT plus shipping costs
**Subject to prior sale
Snap-action microswitches, type Cherry GPTC.
Universal switch with very small travel differential; Switching action: CO. Breaking power: 15 A/250 VAC. Contacts: silver alloy. Connections: CuZn. Function: momentary action. Operating temperatures: –5.0 to +40 °C VDE/0 to +55 ° UL. Termination: M4 screw terminals. Certifications: VDE, UL.
Without auxiliary actuator.
Type: GPTCNH01, overtravel button with screw thread
Technical specifications
| Anschluss | Schraubanschluss | |
| Betätiger | Stift Stößel | |
| Betätigungskraft | 3,4 N | |
| Gehäusematerial | Phenolharz | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 15 A/250 VAC | |
| Schaltpunkt | 17,6 mm ±0,2 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 6/8/11 |
| SVHC frei | Yes |
