BC108A | CDIL

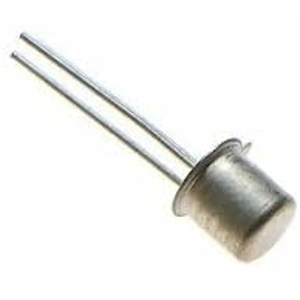

Bipolar junction transistor, NPN, 200 mA, 25 V, THT, TO-18, BC108A
Order No.: 11S2500
EAN: 4099879026422
MPN:
BC108A
Unit Price (€ / pc.)
1.1900 € *
Available: 93 pcs.
Leadtime: 4 Weeks **
Total Price:
1.19 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1900 €
10 pcs.
0.8568 €
100 pcs.
0.7259 €
500 pcs.
0.6307 €
1000 pcs.
0.5712 €
*incl. VAT plus shipping costs
**Subject to prior sale
NPN transistor, BC108A, CDIL
This NPN silicon planar transistor is designed for use as low noise audio general purpose audio amplifier.
Technical specifications
| Version | NPN | |
| Enclosure | TO-18 | |
| max. operating temperature | 200 °C | |
| max.voltage between collector and base Vcbo | 30 V | |
| max.voltage between collector and emitter Vceo | 25 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 200 mA | |
| Saturation voltage | 600 mV | |
| Transit frequency fTmin | 150 MHz | |
| Power dissipation | 0.3 W | |
| Collector current | 200 mA | |
| Max DC amplification | 220 mA | |
| Min DC gain | 110 mA |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85419000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
