ZTX450 | Diodes

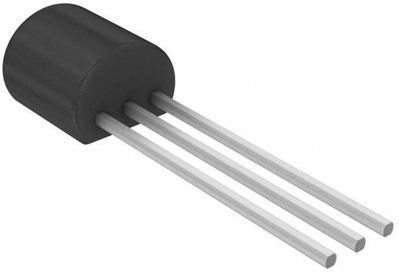

Bipolar junction transistor, NPN, 1 A, 45 V, THT, e-line, ZTX450
Unit Price (€ / pc.)
0.5355 € *
Available: 3,680 pcs.
Leadtime: 11 Weeks **
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4641 €
25 pcs.
0.3332 €
125 pcs.
0.2927 €
500 pcs.
0.2678 €
*incl. VAT plus shipping costs
**Subject to prior sale
NPN transistor, ZTX450, DIODES
NPN silicon planar medium power transistor, E-Line.
Technical specifications
| Version | NPN | |
| Enclosure | e-line | |
| max. operating temperature | 200 °C | |
| max.voltage between collector and base Vcbo | 60 V | |
| max.voltage between collector and emitter Vceo | 45 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Rated current | 1 A | |
| Saturation voltage | 250 mV | |
| Transit frequency fTmin | 150 MHz | |
| Power dissipation | 1 W | |
| Collector current | 1 A | |
| Max DC amplification | 300 mA | |
| Min DC gain | 100 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
