Name: IC heatsink, 14 x 14 x 6 mm, 30 to 8.5 K/W, black anodized
Brand: Fischer Elektronik
SKU: 65B600
Price: 0.80 EUR
Availability: InStock

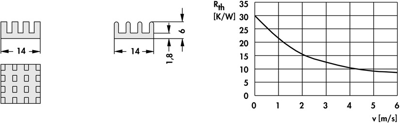

IC heatsink, 14 x 14 x 6 mm, 30 to 8.5 K/W, black anodized

Order No.: 65B600

EAN: 4099889472141

MPN:

10037021

ICK BGA 14 X 14

Series: ICK BGA

Image may differ

Key Specification:

Min. heat resistance 8.5 K/W

Max. heat resistance 30 K/W

Length 14 mm

Width 14 mm

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.7973 € *

Available: 2 pcs.

Leadtime: 1 Week **

Total Price:

0.80 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Heatsinks for BGAs, type Fischer ICK BGA.

Made of black anodized aluminum, suitable for Ball Grid Arrays, matches the respective type precisely

With 14 x 14 and 21 x 21 matrix, type ICK BGA.

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	76042990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Variations

1 item in 8 variations

*incl. VAT plus shipping costs

IC heatsink, 27 x 27 x 6 mm, 20 to 6.5 K/W, black anodized

Order No.:

65B612

Manufacturer SKU:

10037029

Available: 50 pcs. Leadtime: 5 Weeks **

1.92 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

IC heatsink, 14 x 14 x 6 mm, 30 to 8.5 K/W, black anodized

Order No.:

65B600

Manufacturer SKU:

10037021

Available: 2 pcs. Leadtime: 1 Week **

0.80 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

IC heatsink, 10 x 10 x 6 mm, 31 K/W, black anodized

Order No.:

65B590

Manufacturer SKU:

10037019

Available: 139 pcs. Leadtime: 10 Weeks **

0.73 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

IC heatsink, 40 x 40 x 6 mm, 14.6 to 5.8 K/W, black anodized

Order No.:

65B622

Manufacturer SKU:

10037039

Available: 46 pcs. Leadtime: 2 Weeks **

2.58 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

IC heatsink, 23 x 23 x 6 mm, 22.5 to 6.5 K/W, black anodized

Order No.:

65B610

Manufacturer SKU:

10037026

Available: 0 pcs. Leadtime: On Request **

0.90 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

IC heatsink, 31 x 31 x 6 mm, 18.6 to 5.5 K/W, black anodized

Order No.:

65B616

Manufacturer SKU:

10037033

Available: 0 pcs. Leadtime: On Request **

1.06 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

IC heatsink, 35 x 35 x 6 mm, 16.5 to 5.8 K/W, black anodized

Order No.:

65B620

Manufacturer SKU:

10037035

Available: 0 pcs. Leadtime: 2 Weeks **

1.14 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

IC heatsink, 21 x 21 x 6 mm, 24.3 to 8 K/W, black anodized

Order No.:

65B602

Manufacturer SKU:

10037024

Available: 0 pcs. Leadtime: 1 Week **

0.79 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

	Version	heatsink
	Width	14 mm
	Suitable for	BGA
	Height	6 mm
	Length	14 mm
	Material	aluminum
	Max. heat resistance	30 K/W
	Min. heat resistance	8.5 K/W
	Surface type	black anodized
