17000813 | HELUKABEL

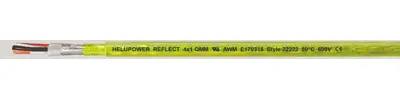

PUR control line HELUPOWER REFLECT 3 G 2.5 mm², AWG 14, shielded, yellow/transparent
Unit Price (€ / mtr.)
8.5204 € *
Available: 46 mtr.
Leadtime: On Request **
Total Price:
8.52 € *
Price list
Quantity
Price per unit*
1 mtr.
8.5204 €
10 mtr.
7.4970 €
100 mtr.
6.5807 €
200 mtr.
6.3189 €
400 mtr.
6.0809 €
*incl. VAT plus shipping costs
**Subject to prior sale

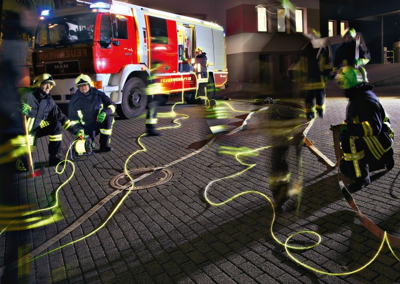

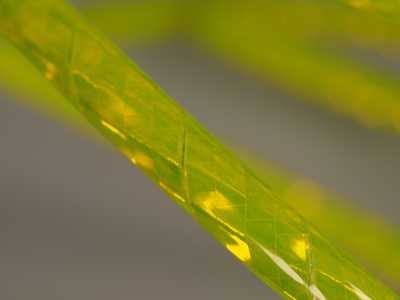

HELUPOWER® Reflect from Helukabel combines electrical transmission and optical signalling in one. Wrapped with a retroreflective yellow tape (DIN 67520), it reflects light rays back to their source regardless of the angle of incidence. The "shining" HELUPOWER® Reflect can call attention to dangers and obstacles in the dark, thus avoiding a trip hazard when used, for example, as an extension cable.

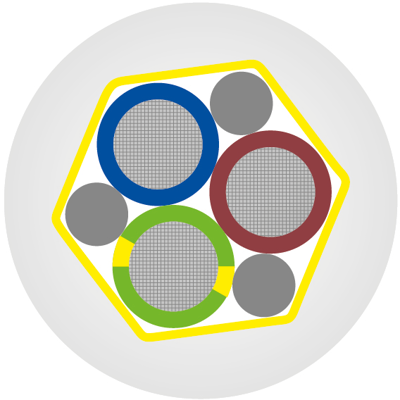

Technical specifications
| Core insulation material | PP | |
| Number of cores | 3 | |
| Version | control line | |
| AWG cross-section | AWG 14 | |
| Colour | yellow/transparent | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 2.5 mm² | |
| Material | PUR | |
| Shielding | shielded | |
| Protective conductor available | Yes | |
| Temperature range (active) | -20 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
