L-7113GD | Kingbright
LED, THT, Ø 5 mm, green, 568 nm, 5 to 20 mcd, 30°, L-7113GD
Unit Price (€ / pc.)
0.2392 € *
Available: 90 pcs.
Leadtime: On Request **
Total Price:
4.78 € *
Price list
Quantity
Price per unit*
20 pcs.
0.2392 €
100 pcs.
0.1761 €
500 pcs.
0.1392 €
2000 pcs.
0.1166 €
4000 pcs.
0.1047 €
*incl. VAT plus shipping costs
**Subject to prior sale

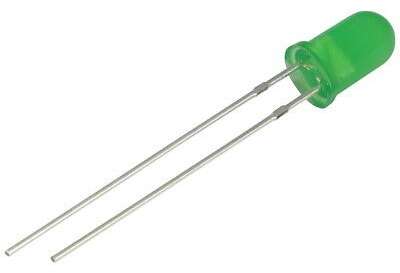

Solid state lamp, L-7113GD, Kingbright
The green source color device is made with gallium phosphide green light emitting diode. It is recommended to use a wrist band or anti- electrostatic glove when handling the LEDs.
Features
- Low power consumption
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- RoHS compliant
Technical specifications
| Radiation angle | 30 ° | |
| Number of LEDs | 1 | |
| On-State Voltage | 6 V | |
| Forward Current | 17.5 mA | |
| diameter | 5 mm | |
| Colour of the LED | green | |
| Length | 8.6 mm | |
| Light intensity min. | 0.005 cd | |
| Light intensity typ. | 0.02 cd | |
| Lens | green | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Wavelength | 568 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| MSL | MSL 1 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
