00463213 | LAPP

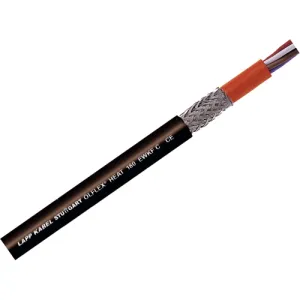

Silicone connection line ÖLFLEX HEAT 180 EWKF C 4 G 2.5 mm², shielded, black
Order No.: 33P949
EAN: 4044774669793
MPN:
00463213
ÖLFLEX HEAT 180 EWKF C 4G2,5
Series: ÖLFLEX HEAT 180 EWKF C
Unit Price (€ / mtr.)
13.8397 € *
Available: 0 mtr.
Leadtime: On Request **
Connection cable, 00463213, LAPP
Features
- Initial tear propagation and notch resistance
- Halogen-free
- No corrosive gases
- Flame retardant
- Good hydrolysis and UV-resistance
- Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
- Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air
Applications
- Areas with high ambient temperatures and occasionally mechanical stress
- Steel, ceramic and iron works
- Bakery equipment and industrial furnaces
- Electric motor industry
- Sauna/solarium construction
- Thermal and heating elements
- Lighting technology
Technical specifications
| Core insulation material | silicone | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 4 | |
| Version | connection line | |
| Outer diameter | 13.9 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2.5 mm² | |
| Material | silicone | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -60 °C to 180 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
