2027027 | LAPP

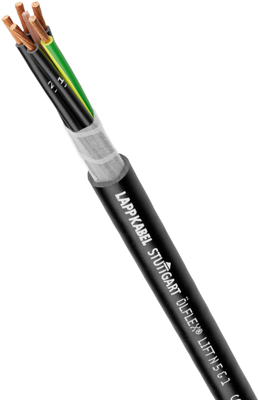

PVC elevator cable ÖLFLEX LIFT N 24 G 1.0 mm², AWG 18, black
Unit Price (€ / mtr.)
13.7683 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Lift cable, 2027027, LAPP
The 2027027 is a high flexible PVC control cable with a suspension strand and cold-flexible PVC jacket for use in elevators and conveyor systems. For use in dry, damp or wet rooms as well as outdoors but only under consideration of the temperature range. Generally resistant against acids, caustic solution and oils at room temperature.
Features
- Suitable for outdoor use
- Cold-resistant
- Optimum strain relief
- UV-resistant
- Special cable design for a long service life
- Very flexible due to extra-fine wire conductor design
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | black | |
| Number of cores | 24 | |
| Version | elevator cable | |
| Outer diameter | 19.3 mm | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 4 kV | |
| Protective conductor available | Yes | |
| Temperature range (active) | -15 °C to 70 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
