K1500GURP | Littelfuse
Thyristor, K1500GURPAH
Order No.: 74P0172
EAN: 4099891770372
MPN:
K1500GURP
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

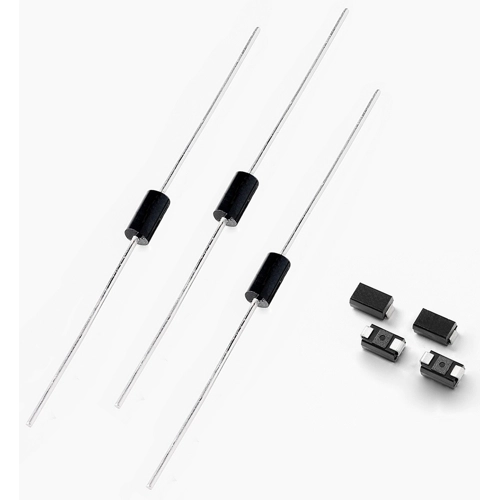

Thyristor, K1500GURP, Littelfuse
The SIDAC is a silicon unilateral voltage triggered switch. Upon application of a voltage exceeding the SIDAC breakover voltage point, the SIDAC switches on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum holding current of the component.
Features
- Rectified AC/DC circuit oriented
- RoHS compliant
Applications
- Suitable for capacitor-discharge HV generator circuit
Technical specifications
| Number of pins | 2 | |
| Enclosure | DO-15 | |
| max. holding current | 80 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Voltage slew rates dV/dt | 1500 V/s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
