1667.0101 | Marquardt

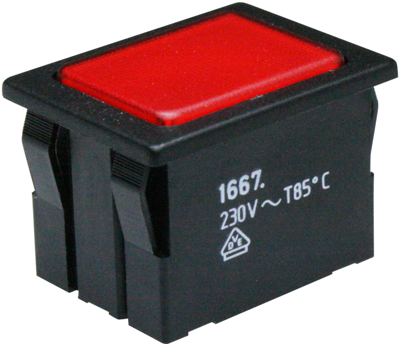

Signal light, red, 1667.0101
Unit Price (€ / pc.)
8.5323 € *
Available: 94 pcs.
Leadtime: 16 Weeks **
Total Price:
8.53 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5323 €
10 pcs.
7.5089 €
100 pcs.
6.5926 €
250 pcs.
6.3308 €
1000 pcs.
5.9262 €
*incl. VAT plus shipping costs
**Subject to prior sale

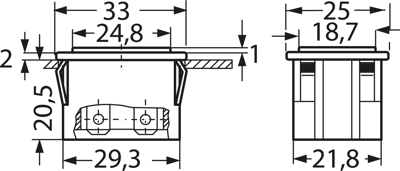

Signal light, 1667.0101
With series resistor; Rated Voltage: 230 V. Mounting: snap-on, for panel thickness 0.75 to 3.0 mm. Housing and lens: thermoplastic. For safety class II devices, matching rocker switches of the series 1600, series 1662 pressure switches etc. Ambient temperature: maximum +85 °C. Housing and frame colors: black, Connections: plug-in terminals 6.3 x 0.8 mm.
Technical specifications
| Connection | plug-in connection | |
| Farbe der Beleuchtung | red | |
| Assembly | snap-in | |
| Rated voltage (AC) | 230 V |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
