3211958 | Phoenix Contact

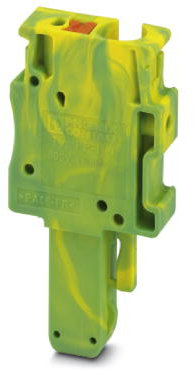

Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, yellow/green, 3211958

Order No.: 60P2251
EAN: 4046356482967
MPN:
3211958
PP-H 4/ 1-L GNYE
Series: PP-H
Phoenix Contact
default L
Image may differ
Print
Key Specification:
Version plug
Number of terminals 1
Pin number 1 pole
Cable cross-section 0.2-6.0 mm²
AWG cross-section AWG 24 to 10
Show 27 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.8088 € *
Available: 40 pcs.
Leadtime: On Request **
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Plug, 3211958, Phoenix Contact

Plug, rated voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, 1st level connection left, Rated cross section: 4 mm², cross section: 0.2 mm²  - 6 mm², color: green/yellow.

Features

  • Large-surface labeling option
  • The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
  • Tested for railway applications
Technical specifications
Connection push-in connection
Number of terminals 1
Version plug
AWG cross-section AWG 24 to 10
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 6.2 mm
Colour yellow/green
Height 42.3 mm
Length 21 mm
Cable cross-section 0.2-6.0 mm²
Rated current 32 A
Pin number 1 pole
Degree of soiling 3
Show similar products 0
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Width
Unit:
Pin number
Colour
Number of terminals
Cable cross-section
Version
Rated Voltage
Length
Unit:
Height
Unit:
Connection
AWG cross-section
Rated current
Unit:
1 item in 27 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Width
Pin number
Colour
Number of terminals
Cable cross-section
Version
Rated Voltage
Length
Height
Connection
AWG cross-section
Rated current
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, blue, 3212077
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, blue, 3212077
Order No.:
 60P2247
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3212077
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
blue
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, blue, 3211964
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, blue, 3211964
Order No.:
 60P2254
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3211964
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
blue
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 12 pole, 32 A, 8 kV, gray, 3212080
Plug, push-in connection, 0.2-6.0 mm², 12 pole, 32 A, 8 kV, gray, 3212080
Order No.:
 60P2271
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3212080
Available: 0 pcs. Leadtime: On Request **
Total Price: 18.00 € *
1 pcs.
18.0047 €
10 pcs.
16.1959 €
100 pcs.
13.7683 €
74.4 mm
12 pole
gray
12
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, blue, 3211980
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, blue, 3211980
Order No.:
 60P2258
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3211980
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
blue
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3212010
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3212010
Order No.:
 60P2246
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3212010
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
gray
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 13 pole, 32 A, 8 kV, gray, 3212087
Plug, push-in connection, 0.2-6.0 mm², 13 pole, 32 A, 8 kV, gray, 3212087
Order No.:
 60P2272
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3212087
Available: 0 pcs. Leadtime: On Request **
Total Price: 19.50 € *
1 pcs.
19.5041 €
10 pcs.
17.5644 €
100 pcs.
14.9226 €
80.6 mm
13 pole
gray
13
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 2 pole, 32 A, 8 kV, gray, 3212016
Plug, push-in connection, 0.2-6.0 mm², 2 pole, 32 A, 8 kV, gray, 3212016
Order No.:
 60P2261
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3212016
Available: 0 pcs. Leadtime: On Request **
Total Price: 3.38 € *
1 pcs.
3.3796 €
10 pcs.
3.0464 €
100 pcs.
2.5823 €
12.4 mm
2 pole
gray
2
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, red, 3211949
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, red, 3211949
Order No.:
 60P2252
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3211949
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
red
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3211977
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3211977
Order No.:
 60P2257
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3211977
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
gray
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3211965
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3211965
Order No.:
 60P2253
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3211965
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
gray
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3211948
Plug, push-in connection, 0.2-6.0 mm², 1 pole, 32 A, 8 kV, gray, 3211948
Order No.:
 60P2249
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3211948
Available: 0 pcs. Leadtime: On Request **
Total Price: 1.81 € *
1 pcs.
1.8088 €
10 pcs.
1.6184 €
100 pcs.
1.3804 €
6.2 mm
1 pole
gray
1
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
Plug, push-in connection, 0.2-6.0 mm², 11 pole, 32 A, 8 kV, gray, 3212074
Plug, push-in connection, 0.2-6.0 mm², 11 pole, 32 A, 8 kV, gray, 3212074
Order No.:
 60P2270
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 3212074
Available: 0 pcs. Leadtime: On Request **
Total Price: 16.51 € *
1 pcs.
16.5053 €
10 pcs.
14.8512 €
100 pcs.
12.6378 €
68.2 mm
11 pole
gray
11
0.2-6.0 mm²
plug
800 V
21 mm
42.3 mm
push-in connection
AWG 24 to 10
32 A
