1622866-1 | TE Connectivity
Resistor, thick film, SMD 0603 (1608), 1 kΩ, 0.1 W, ±1 %, 1622866-1
Unit Price (€ / pc.)
0.0143 € *
Available: 10,000 pcs.
Leadtime: On Request **
Total Price:
0.01 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0143 €
10 pcs.
0.0131 €
300 pcs.
0.0090 €
1000 pcs.
0.0065 €
3000 pcs.
0.0051 €
*incl. VAT plus shipping costs
**Subject to prior sale

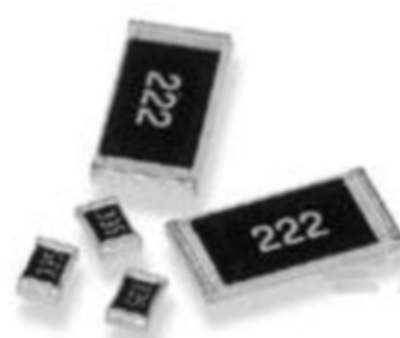

Thick Film Chip Resistor, 1622866-1, TE Connectivity
The 1622866-1 is a thick film resistor with high power to size ratio, ideally suited to industrial and general purpose use.
Features
- Terminal finish matte Sn over Ni
Technical specifications
| ohmic resistance | 1 kΩ | |
| Design | SMD 0603 (1608) | |
| Width | 0.8 mm | |
| Height | 0.55 mm | |
| Length | 1.6 mm | |
| Power | 0.1 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/K |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
