83101032 | Protective Tubes
Protective hose, inside Ø 48.2 mm, outside Ø 53.9 mm, BR 115 mm, PE, gray, 83101032
Unit Price (€ / mtr.)
5.0694 € *
Available: 0 mtr.
Leadtime: 1 Week **

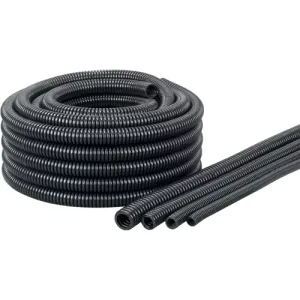

Cable protection conduit, 83101032, murrplastik
The EW cable protection conduit is made of specially modified polyethylene. The material is halogen, phosphor and cadmium-free. The EW cable protection conduit is characterised by excellent flexibility and good flexural fatigue strength.
47P0160Applications
- Light mechanical loads
- Plant engineering
- Mechanical engineering
- Control cabinet construction
Technical specifications
| Outer diameter | 53.9 mm | |
| Bending radius | 115 mm | |
| Colour | grau | |
| Inner diameter | 48.2 mm | |
| Material | PE | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Nominal width | 48 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
| Original Packaging | Rolle mit 25 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
