09 0053 90 14 | binder

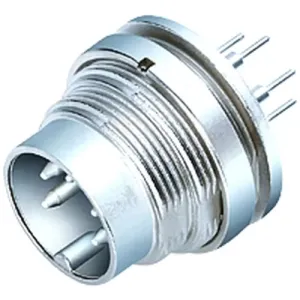

Panel plug, 14 pole, solder pin, screw locking, straight, 09 0053 90 14
Unit Price (€ / pc.)
15.4224 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.42 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4224 €
10 pcs.
14.3395 €
50 pcs.
13.1852 €
100 pcs.
12.0071 €
*incl. VAT plus shipping costs
**Subject to prior sale
680 Series, Miniature Connectors 09 0053 90 14
General characteristics
Connector style: flange connector
Connector design: pin straight
Connector latching: screw
Connection type: dip soldering
Protection class: IP40
Limit temperature: -40 to 85 °C
Tightening torque: 0.5 - 1 Nm (nut)
Mechanical life: > 500 mating cycles
Electrical characteristics
Rated voltage: 60 V
Rated impulse voltage: 500 V
Rated current (40°C): 3 A
Insulation resistance: ≥ 10¹⁰ Ω
Pollution degree: 1
Overvoltage category: I
Insulation group: III
EMC suitability: unshielded
Materials
Material housing: zinc die casting nickel plated
Material contact body: PBT (UL94 V-0)
Material contact: CuZn (brass)
Contact surface: Au (gold)
Technical specifications
| Version | Einbaustecker | |
| Additional parts | bestückt | |
| Shell Material | Zinkdruckguss | |
| Contact connection | Einlötstift | |
| contact surface | vergoldet | |
| Cable cross-section | 0,25 mm² | |
| Assembly | Leiterplattenmontage | |
| Orientation | gerade | |
| Pin number | 14-polig | |
| Type of locking | Schraubverriegelung |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
