ENS1J-B28-L00256L | Bourns Electronics GmbH

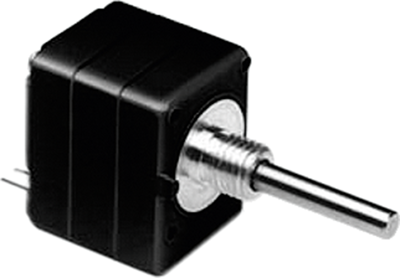

Optical rotary encoder, 5 V, impulses 256, ENS1J-B28-L00256L
Unit Price (€ / pc.)
97.7823 € *
Available: 38 pcs.
Leadtime: 10 Weeks **
Total Price:
97.78 € *
Price list
Quantity
Price per unit*
1 pcs.
97.7823 €
5 pcs.
91.9156 €
42 pcs.
82.0624 €
84 pcs.
79.7062 €
*incl. VAT plus shipping costs
**Subject to prior sale
Optoelectronic rotary encoder, ENS1J-B28-L00256L, Bourns Electronics GmbH
Features: channel A with clockwise 90° phase offset leading channel B. Square-wave signal, compatible to CMOS and TTL. Outlet: 2-bit Gray code. Supply voltage: 5.0 VDC. Input current: max. 26 mA. Output voltage: max. 0.8 V (low), min. 4.0 V (high). Rise and decay time: typically 200 ns. RPM/Useful live: 300 rev/min/10 million (type ENS1J-B28-L00256L 3000 rev/min/200 million). Operating temperatures: -40 to +75 °C. Degree of protection IP 40. Shaft length: 7/8 inch.
Technical attributes (type, shaft diameter, bushing length, thread): ENS1J-B28-L00256L, 6.34 mm, 9.53 mm, 3/8-32 UNEF.
Technical specifications
| Connection | Lötstift | |
| Length | 40.72 mm | |
| Assembly | Panelmontage | |
| Product type | Optischer Drehgeber | |
| Voltage | 5 V | |
| Pulses per revolution | 256 |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85365015 |
| MSL | MSL 1 |
| Original Packaging | Stange mit 42 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
