DEM 20231 SYH-PY | Display Elektronik

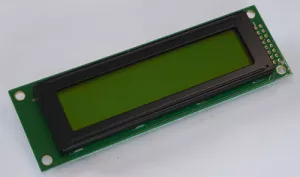

Alphanumeric display, 2 x 20 character, STN yellow/green, viewing area: 83 x 18.6 mm, DEM 20231 SYH-PY
Order No.: 71S337
EAN: 4099879003959
MPN:
DEM 20231 SYH-PY
Unit Price (€ / pc.)
17.3502 € *
Available: 0 pcs.
Leadtime: On Request **
LCD-Module, DEM 20121 SYH-LY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/8 Duty Cycle, 1/4 Bias
- Viewing Direction: 6 O’clock
- Display Format: 20x1 Characters
Technical specifications
| Display | 2 x 20 Zeichen | |
| Viewing area (width) | 83 mm | |
| Viewing range (height) | 18.6 mm | |
| Width | 116 mm | |
| Thickness | 8.6 mm | |
| type of backlight | LED | |
| Background color | gelb/grün | |
| Height | 37 mm | |
| IC controller/driver | HD44780 kompatibel | |
| Image | Positiv | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| MPU interface | 8-Bit-MCU | |
| Technology | STN-gelb/grün | |
| Character height | 5.55 mm | |
| Character set | Englisch-Japanisch |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
