10339 | HELUKABEL

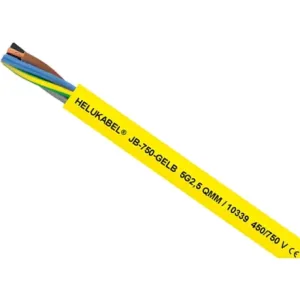

PVC control line JB-750-GELB 5 G 2.5 mm², AWG 14, unshielded, yellow, 10339
Unit Price (€ / mtr.)
5.4621 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control cable, 10339, HELUKABEL
The 10339 is a PVC control cable used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use. Also used as a control cable with a yellow outer sheath as a special warning indication.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 5 | |
| Version | Steuerleitung | |
| Outer diameter | 11.4 mm | |
| AWG cross-section | AWG 14 | |
| Colour | gelb | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 2,5 mm² | |
| Material | PVC | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 4 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -15 °C bis 80 °C | |
| Temperature range (unmoved) | -40 °C bis 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
