24379 | HELUKABEL

PUR control line MULTISPEED 500-PUR UL/CSA 4 G 0.75 mm², AWG 19, unshielded, black, 24379

Order No.: 93F6456
EAN: 4060892134814
MPN:
24379

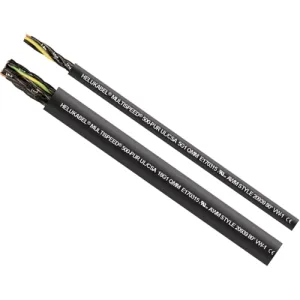

24379 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
4.284 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
428.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
4.284 €

Control cable, 24379, HELUKABEL

The 24379 is a UL/CSA approved cable used when extreme demands are placed on the cable. Gearing toward the needs of the industry, materials and stranding techniques permit uninterrupted use as highly flexible drag chain cables with long travelling distance capabilities at high or low speeds. For installation in dry, damp and wet rooms, as well as outdoors. For applications with the highest demands on flexibility, abrasion resistance and robustness, e.g. in cable carrier systems on industrial robots, production lines, automation systems and other permanently moving machine parts in continuous and multi-shift operation.

Features

  • Highly restistant to alternate bending strength
  • Largely resistant to chemicals
  • Use in drag chains
Technical specifications
Core insulation material PP
Core colour sequence schwarz
Number of cores 4
Version Steuerleitung
Outer diameter 6.1 mm
AWG cross-section AWG 19
Colour schwarz
Halogen free Yes
Cable material Kupfer, blank
Cable cross-section 0,75 mm²
Material PUR
Rated voltage 500 V
Rated voltage U0 300 V
Rated voltage UL/CSA 600 V
Test voltage 3 kV
Shielding ungeschirmt
Drag chain suitable Yes
Protective conductor available Yes
Temperature range (active) -30 °C bis 80 °C
Temperature range (unmoved) -40 °C bis 80 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
