804268 | HELUKABEL
PE data cable, CAN bus, 2-wire, 0.5 mm², AWG 20/7, black, 804268
Order No.: 93F7648
EAN: 4060892315060
MPN:
804268
Unit Price (€ / mtr.)
3.7128 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

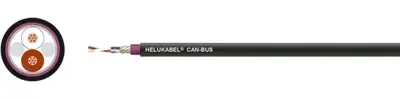

CAN Bus cable, 804268, HELUKABEL
This CAN Bus Direct Burial is suitable for fixed outdoor installation or direct burial applications. The 2-pair version is designed with star-quad twisting, i.e. diagonal conductors form an electrical pair and meets the requirements of the CAN standard.
Technical specifications
| Core insulation material | PE | |
| Number of cores | 2 | |
| Version | Datenkabel | |
| Outer diameter | 9.2 mm | |
| AWG cross-section | AWG 20/7 | |
| Bussystem | CAN-Bus | |
| Colour | schwarz | |
| Halogen free | No | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,5 mm² | |
| Material | PE | |
| Shielding | geschirmt | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | -40 °C bis 70 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
