SI6700 | IFM electronic
Flow monitor, with display, PNP, 30 bar, Ø 50 mm, stainless steel/PC/PBT-GF20/EPDM/X, SI6700
Order No.: 82P8320
EAN: 4021179258586
MPN:
SI6700
Unit Price (€ / pc.)
551.5174 € *
Available: 0 pcs.
Leadtime: 1 Week **

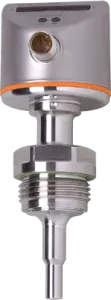

Flow monitor, SI6700, IFM electronic
Features
- Hygienic design for the requirements of the food and beverage industry
- Suitable for SIP processes up to 140 °C
- LED bar graph for indication of switch point and flow
- Extensive range of process adapters in the accessories
- Wetted parts made of stainless steel
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, PNP | |
| Druck | 30 bar | |
| Durchmesser | 50 mm | |
| Gehäusematerial | Edelstahl/PC/PBT-GF20/EPDM/X | |
| Messbereich | 3-300 cm/s, 200-3000 cm/s, Stablänge 38 mm | |
| Montage | G 1 Außengewinde | |
| Produkt-Art | Strömungswächter | |
| Schaltfunktion | Schließer/Öffner | |
| Schutzart (IP) | IP67/IP69K |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
