PG2897 | IFM electronic
Pressure sensor, -0.05-1 bar/-50-1000 mbar/-0.73-14.5 psi, 18-32 VDC, PG2897
Unit Price (€ / pc.)
1,005.6690 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,005.67 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,005.6690 €

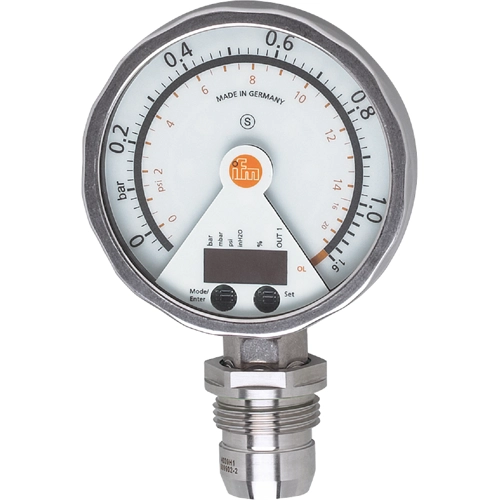

Electronic pressure sensor, PG2897, IFM electronic
Features
- Analogue display, pressure switch and transmitter in one unit
- Excellent readability also over a long distance
- Rotatable display with LED bar graph for switch point indication
- Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
- Flush process connection for use in CIP and SIP processes
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | Relativdruck, PNP/NPN, Analoganzeige | |
| diameter | 100 mm | |
| Length | 153 mm | |
| max. operating temperature | 80 °C | |
| measurement range | -0,05-1 bar/-50-1000 mbar/-0,73-14,5 psi | |
| min. operating temperature | -25 °C | |
| Assembly | G 1 Außengewinde | |
| Product type | Drucksensor | |
| Latching switching function | Schließer/Öffner | |
| Voltage | 18-32 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
