II5914 | IFM electronic
Inductive sensor, PNP/NPN, IO-Link, flush mounting M30, not flush, 1 Form A (N/O) + 1 Form B (N/C), 30 V (DC), 100 mA, II5914
Order No.: 82P5948
EAN: 4021179128988
MPN:
II5914
Unit Price (€ / pc.)
170.8840 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
170.88 € *
Price list
Quantity
Price per unit*
1 pcs.
170.8840 €
3 pcs.
166.1597 €
5 pcs.
161.6853 €
*incl. VAT plus shipping costs
**Subject to prior sale

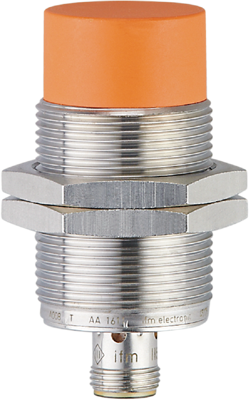

Inductive sensor, II5914, IFM electronic
Features
- Precise linearised output signal
- Very high repeatability
- For non-contact distance measurement
- Wide operating temperature range
- Robust metal housing for use in harsh industrial environments
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | PNP/NPN, IO-Link | |
| Detecting distance | Schaltpunkt 2,37-13,99 mm, Messbereich 1-15 mm | |
| Length | 65 mm | |
| Assembly | Einbaumontage M30, nicht bündig | |
| Product type | Induktiver Analogsensor | |
| Latching switching function | 1 Schließer + 1 Öffner | |
| Switching Voltage (DC) | 30 V | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP65/IP66/IP67/IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
