IIM219 | IFM electronic

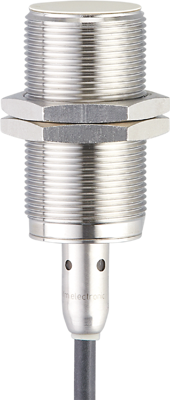

Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 60 V (DC), 200 mA, IIM219
Order No.: 82P6000
EAN: 4021179317580
MPN:
IIM219
Unit Price (€ / pc.)
145.0134 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
145.01 € *
Price list
Quantity
Price per unit*
1 pcs.
145.0134 €
3 pcs.
141.0031 €
5 pcs.
137.2070 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inductive sensor, IIM219, IFM electronic
Features
- E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
- Wide operating temperature range
- High ingress protection for the requirements of harsh environmental conditions
- High EMC resistance according to automotive standards
- Large operating voltage range
Technical specifications
| Connection | Kabel, PUR 3x0,5 mm², 15 m | |
| Version | PNP | |
| Detecting distance | 12 mm | |
| Length | 81 mm | |
| Assembly | Einbaumontage M30, bündig | |
| Product type | Induktiver Sensor | |
| Latching switching function | 1 Schließer | |
| Switching Voltage (DC) | 60 V | |
| switching current | 200 mA | |
| Degree of protection (IP) | IP67/IP69K |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
