1027937 | LAPP
PUR control line ÖLFLEX CHAIN 819 CP 25 G 1.5 mm², shielded, black, 1027937
Order No.: 33P6504
EAN: 4044777658312
MPN:
1027937
ÖLFLEX CHAIN 819 CP 25G1,5
Series: ÖLFLEX CHAIN 819 CP
Unit Price (€ / mtr.)
22.5981 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
11,299.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 mtr.
22.5981 €
Control line, 1027937, LAPP

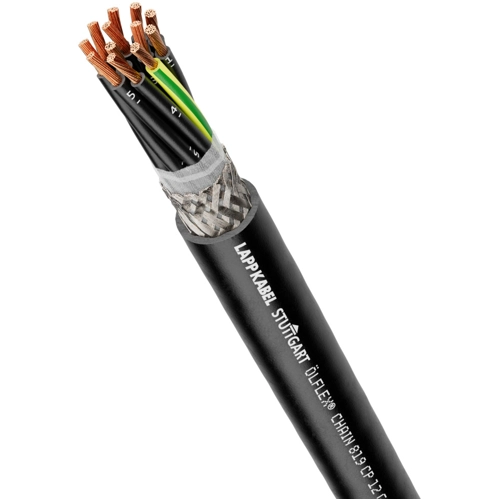

The 1027937 highly flexible, screened control cable with PVC core insulation and robust, oil-resistant outer sheath of PU-special blend.
Features
- High oil-resistance
- Mechanically robust
- Low-adhesive surface
- Durable thanks to robust sheath material
Applications
- In power chains or moving machine parts
- In EMC-sensitive environments
- Very suitable for oily wet areas within machinery and production lines
- Assembly lines, production lines, in all kinds of machines
- Suitable for use in measuring, control and regulating circuits
- Indoor applications or dry rooms
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | schwarz | |
| Number of cores | 25 | |
| Version | Steuerleitung | |
| Outer diameter | 18.7 mm | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,5 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Rated voltage UL/CSA | 1 kV | |
| Standard number | UL, CSA | |
| Test voltage | 4 kV | |
| Shielding | geschirmt | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Temperature range (unmoved) | -40 °C bis 70 °C |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
