045806.3DR | Littelfuse
SMD-Fuse SMD 1206, 6.3 A, F, 75 V (DC), 50 A breaking capacity, 045806.3DR
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
SMD-Fuse, 045806.3DR, Littelfuse

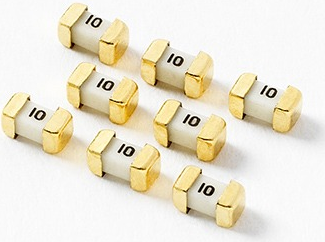

The 045806.3DR is an ultra-small, square surface mount fuse designed to support a variety of space constrained overcurrent protection applications.
Features
- Surface Mount Fuse
- Fully compatible with lead free soldering profiles
- RoHS-compatible and halogen free
Applications
- LCD backlight inverter
- Car navigation system
- DC/DC converter
- Portable consumer electronics
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 50 A | |
| Bauform | SMD 1206 | |
| Breite | 1.58 mm | |
| Gehäuse | SMD | |
| Höhe | 1.58 mm | |
| Länge | 3.18 mm | |
| Nennspannung (DC) | 75 V | |
| Nennstrom | 6.3 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Rolle mit 1.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
