1831.2081 | Mentor
Cermet trimmer potentiometer, 5 kΩ, 0.5 W, THT, lateral, 1831.2081
Unit Price (€ / pc.)
13.1971 € *
Available: 15 pcs.
Leadtime: 7 Weeks **
Total Price:
13.20 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1971 €
25 pcs.
11.5906 €
50 pcs.
11.2098 €
200 pcs.
10.5672 €
500 pcs.
10.1745 €
*incl. VAT plus shipping costs
**Subject to prior sale

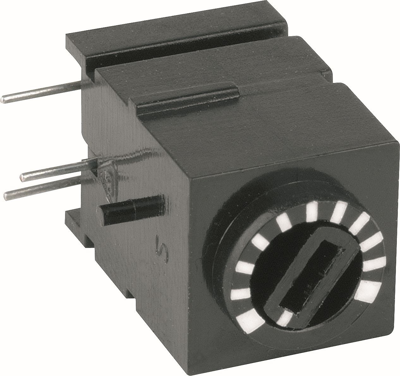

Trimmer potentiometer, 1831.2081, Mentor
The collar on the face of the cermet-potentiometer is provided with a scale for optical setting of the value of resistance and serves simultaneously as subbase in the front panel. The potentiometer can easily be operated by means of a screw driver and a vector of infinitesimal rotation of 260 degrees. The components are equipped with a fixing pin which serves as additional mechanical fixation point on the printed circuit board.
Technical specifications
| ohmscher Widerstand | 5 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 10.1 mm | |
| Drehbereich (elektrisch) | 230 ° | |
| Drehbereich (mechanisch) | 260 ° | |
| Einstellung | seitlich | |
| Höhe | 10.1 mm | |
| Kontaktabstand | RM 2,54 | |
| Länge | 16.76 mm | |
| Leistung | 0.5 W | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -25 °C | |
| Montage | THT | |
| Toleranz | ±20 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85334010 |
| Originalverpackung | Bulk mit 25 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
