NC4MRX | Neutrik
XLR plug, 4 pole, silver-plated, 1.5 mm², AWG 16, zinc die casting, NC4MRX
Unit Price (€ / pc.)
19.9444 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
19.94 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9444 €
10 pcs.
18.3498 €
25 pcs.
16.8861 €
50 pcs.
15.1963 €
*incl. VAT plus shipping costs
**Subject to prior sale

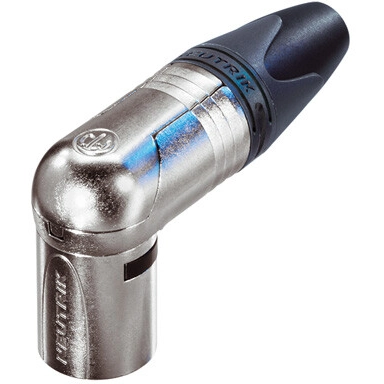

XLR-Cable connector male, NC4MRX, Neutrik
4 pole right angle male cable connector, nickel housing, silver contacts.
Features
- Extra slim right-angle connector
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Technical specifications
| Version | Stecker | |
| AWG cross-section | AWG 16 | |
| Enclosure | Zinkdruckguss | |
| Cable diameter | 3,5-8 mm | |
| Contact connection | Lötanschluss | |
| contact surface | versilbert | |
| Cable cross-section | 1,5 mm² | |
| Assembly | Kabelmontage | |
| Rated voltage | 50 V | |
| Rated current | 10 A | |
| Pin number | 4-polig | |
| Type of locking | Riegelverriegelung |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
