1852846 | Phoenix Contact

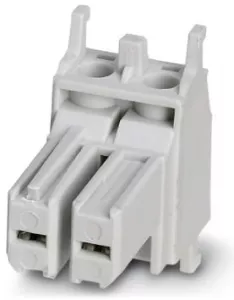

Socket contact insert, 2 pole, equipped, screw connection, 1852846
Unit Price (€ / pc.)
3.9746 € *
Available: 0 pcs.
Available in 10 days: 3,237 pcs.
Leadtime: 2 Weeks **
Contact insert module, 1852846, Phoenix Contact
Contact insert, Housing material: Polyamide, Color: light gray, Number of positions: 2, Min. conductor cross section: 0.25 mm², Max. conductor cross section: 4 mm², Rated voltage: 400, Rated current: 20 A, Connection method: Screw connection, Type of contact: Socket. Connectors may only be connected/disconnected when under no load.
Features
- Compact design
- Universal connection
- Proven COMBICON technology
- Can be keyed to prevent incorrect connection
Technical specifications
| Version | Buchseneinsatz | |
| Additional parts | bestückt | |
| Contact connection | Schraubanschluss | |
| PE contact | No | |
| Pin number | 2-polig |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
