1378318 | Phoenix Contact
Socket header, 8 pole, pitch 2.5 mm, straight, black, 1378318
Unit Price (€ / pc.)
0.6664 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

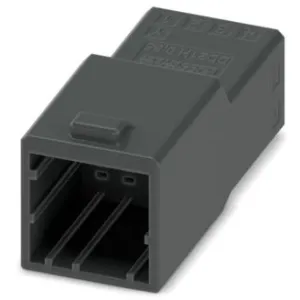

PCB connector, 1378318, Phoenix Contact
PCB connector, color: black, nominal current: 5 A, rated voltage (III/2): 160 V, contact connection type: Socket, number of rows: 2, number of positions: 8, product range: DD21PC 0,85/.., pitch: 2.5 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: CONNEXIS DD, locking: Snap-in locking, mounting: Self-locking flange.
Features
- Cost-effective connection of crimped conductors in large quantities
- Small component size for applications where space is at a premium
- Intuitive locking mechanism prevents accidental disconnection
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 160 V | |
| Rated current | 5 A | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
