3208745 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.5-16 mm², 3 pole, 8 kV, yellow/green, 3208745
Unit Price (€ / pc.)
8.7822 € *
Available: 51 pcs.
Available in 10 days: 62 pcs.
Leadtime: 1 Week **
Total Price:
8.78 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7822 €
10 pcs.
8.0801 €
50 pcs.
7.3542 €
100 pcs.
6.6164 €
*incl. VAT plus shipping costs
**Subject to prior sale

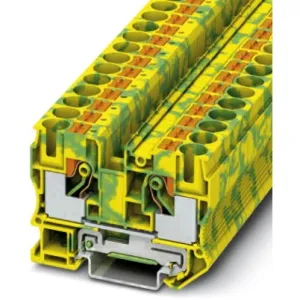

Ground modular terminal block, 3208745, Phoenix Contact
Ground modular terminal block, number of connections: 3, connection method: Push-in connection, 1 level, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- Tested for railway applications
- All terminal blocks provide an additional test connection
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 10.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 50.5 mm | |
| Länge | 88.9 mm | |
| Leiterquerschnitt | 0,5-16 mm² | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
