3-137-418 | SCHURTER
Choke, THT, 7.8 mH, 4 A, 3-137-418
Unit Price (€ / pc.)
4.6291 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

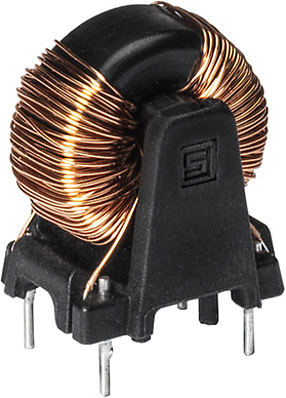

Compensated Choke, 3-137-418, SCHURTER
The current compensated single-phase choke features nanocrystalline cores and THT terminals, along with a flange designed for attachment to a printed circuit board.
Features
- Very high inductance
- Compact design with a small footprint
- Open design optimizes heat dissipation
Applications
- Switching power supplies
- Medical equipment
- Laboratory equipment
- Test equipment
- Frequency inverters
Technical specifications
| Ausführung | Drossel | |
| Bauform | THT | |
| Breite | 16.8 mm | |
| Gleichstrom | 4 A | |
| Gleichstromwiderstand | 15.7 mΩ | |
| Höhe | 25 mm | |
| Induktivität | 7.8 mH | |
| Länge | 19.4 mm | |
| Toleranz | -30/+50 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Karton mit 180 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
