3410.0025.02 | SCHURTER
SMD-Fuse SMD 1206, 375 mA, FF, 125 V (DC), 125 V (AC), 50 A breaking capacity, 3410.0025.02
Unit Price (€ / pc.)
1.6898 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

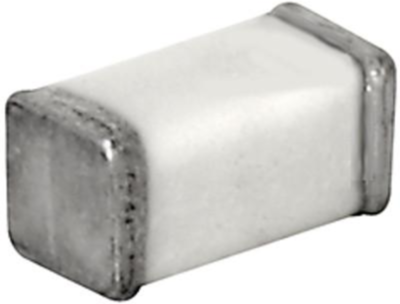

SMD-Fuse, 3410.0025.02, SCHURTER
The 3410.0025.02 is a SMD super quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material glass tube
- Material terminals nickel tin-plated
- Hermetically sealed and robust construction
- High breaking capacity up to 300 A
Applications
- Applications where high reliability and availability is needed
- Medical equipment
- Offshore
- Defense
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | FF | |
| Ausschaltvermögen | 50 A | |
| Bauform | SMD 1206 | |
| Breite | 1.55 mm | |
| Gehäuse | SMD | |
| Höhe | 1.55 mm | |
| Länge | 3.2 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 375 mA |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Blister mit 750 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
