7100.1073.13 | SCHURTER
Micro fuse 11.5 x 5 mm, 6.3 A, F, 250 V (DC), 250 V (AC), 100 A breaking capacity, 7100.1073.13
Unit Price (€ / pc.)
0.6426 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

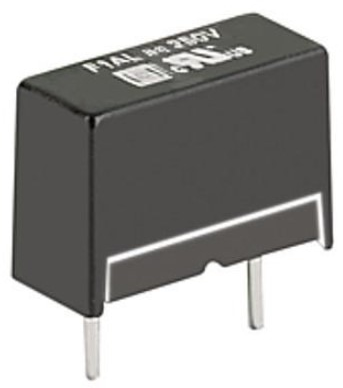

Micro fuse, 7100.1073.13, SCHURTER
The 7100.1073.13 is a quick-acting subminiature fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing thermoplastic
- Material terminals copper tin-plated
- Suitable for PCB, THT
Applications
- PCBs
- Primary protection on PCB
Technical specifications
| Ausführung | Kleinstsicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 100 A | |
| Bauform | 11,5 x 5 mm | |
| Breite | 5 mm | |
| Höhe | 8 mm | |
| Länge | 11.5 mm | |
| Nennspannung (AC) | 250 V | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 6.3 A |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
