3SE5114-1CA00-1AF5 | Siemens

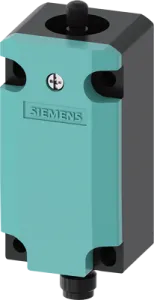

Basic switch, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), dome plunger, M12-plug, IP66/IP67, 3SE5114-1CA00-1AF5
Order No.: 80P7456
EAN: 4011209864993
MPN:
3SE5114-1CA00-1AF5
3SE51141CA001AF5
Unit Price (€ / pc.)
86.8938 € *
Available: 0 pcs.
Leadtime: 1 Week **
Basic switch for position switch 3SE51 Metal enclosure 40 mm according to EN 50041 1 NO/1 NC quick action contact with M12 connector, 5-pole, fixed with 2 LEDs, yellow/green, 24 V DC 4 A, without actuator head Pin assignment: Pin 1=21+13 Jumper + LED green Pin 2=22, Pin 3=ground LED Pin 4=14 + LED yellow, Pin 5=PE Mechanical safety switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Latching switching function | 1 Schließer + 1 Öffner | |
| Pin number | 2-polig | |
| Actuator | Kuppenstößel | |
| Connection | M12-Stecker | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidin-2-thion (2-Imidazolin-2-thiol), Blei |
